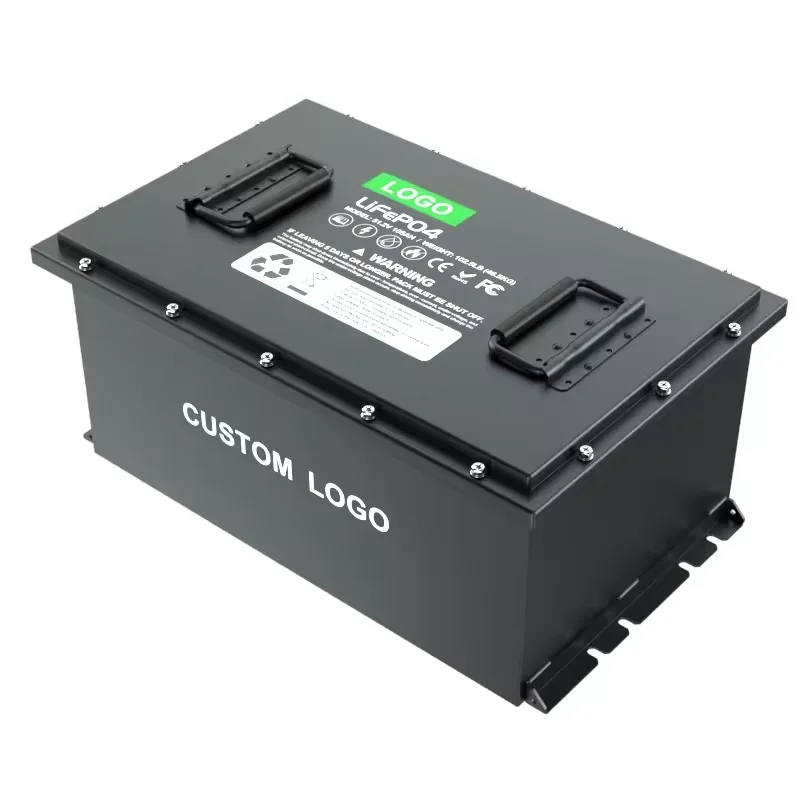

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts

Name: Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts
Brand: PINSHENG ENERGY
Price: 439 USD

Quality Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts for sale

Brand Name : PINSHENG ENERGY

Model Number : PE-W22112202

Place of Origin : Hunan, China

MOQ : 2

Price : $439-485

Battery Size : 18650

Battery Type : Lifepo4/lithium Battery

Voltage : 48V/51.2V

BMS : Smart BMS

Capacity : 105Ah or Customized

Anode Material : NCM

Charging Rate : 1c

Discharge Rate : 2c

Electric Energy : 5000 Wh

Nominal Voltage : 51.2V

Nominal Capacity : 105Ah

Battery Energy : 5376Wh

Internal Resistance : ≤ 8mΩ

Cycle Life : ≥6000 cycles 80%DOD

Self Discharge : <3% per month

Contact Now

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts

Electrical Characteristics	Model Number	PE-101
		Nominal voltage	51.2V
		Nominal capacity	105Ah
		Battery energy	5376Wh
		Internal resistance	≤ 8mΩ
		Cyclelife	≥6000 cycles 80%DOD
		Self discharge per month	<3%
Standard charge	Charge cut off voltage	58.4V
		Charge mode	CC/CV(constant current/constant voltage)
		Standard charge current	20A
		Max charge current	50A
Standard discharge	Discharge cut off voltage	40V
Standard discharge		Continuous discharge current	200A
Environment	Charge temperature	0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
		Discharge temperature	-5℃ to 60 ℃ @60±25% Relative Humidity
		Storage temperature	0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Mechanical	Case	metal case

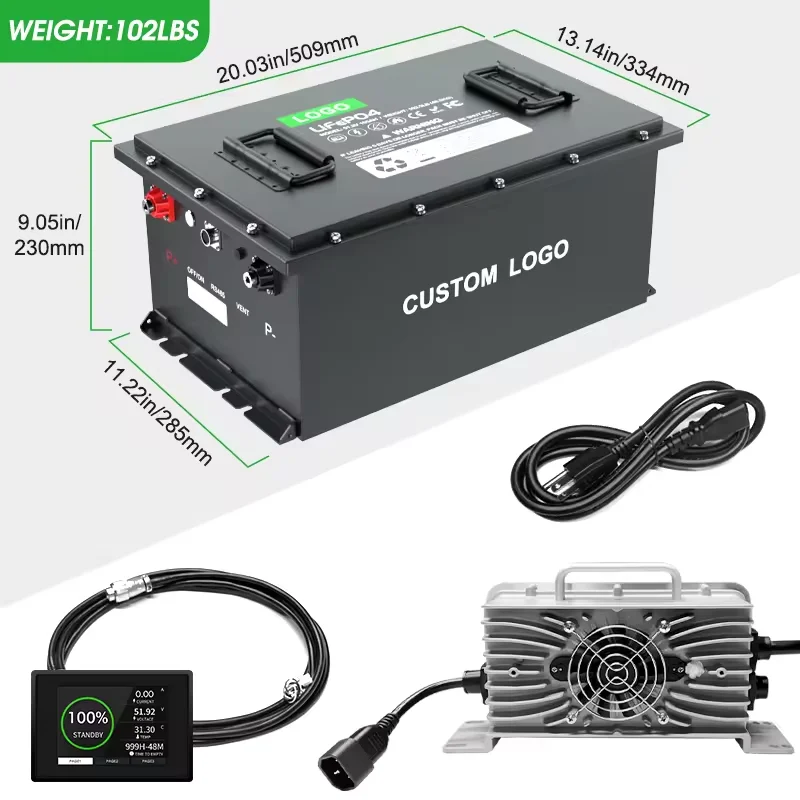

		Dimension	470334247mm(LWH)
		Terminal	M10
		weight	44.60kg

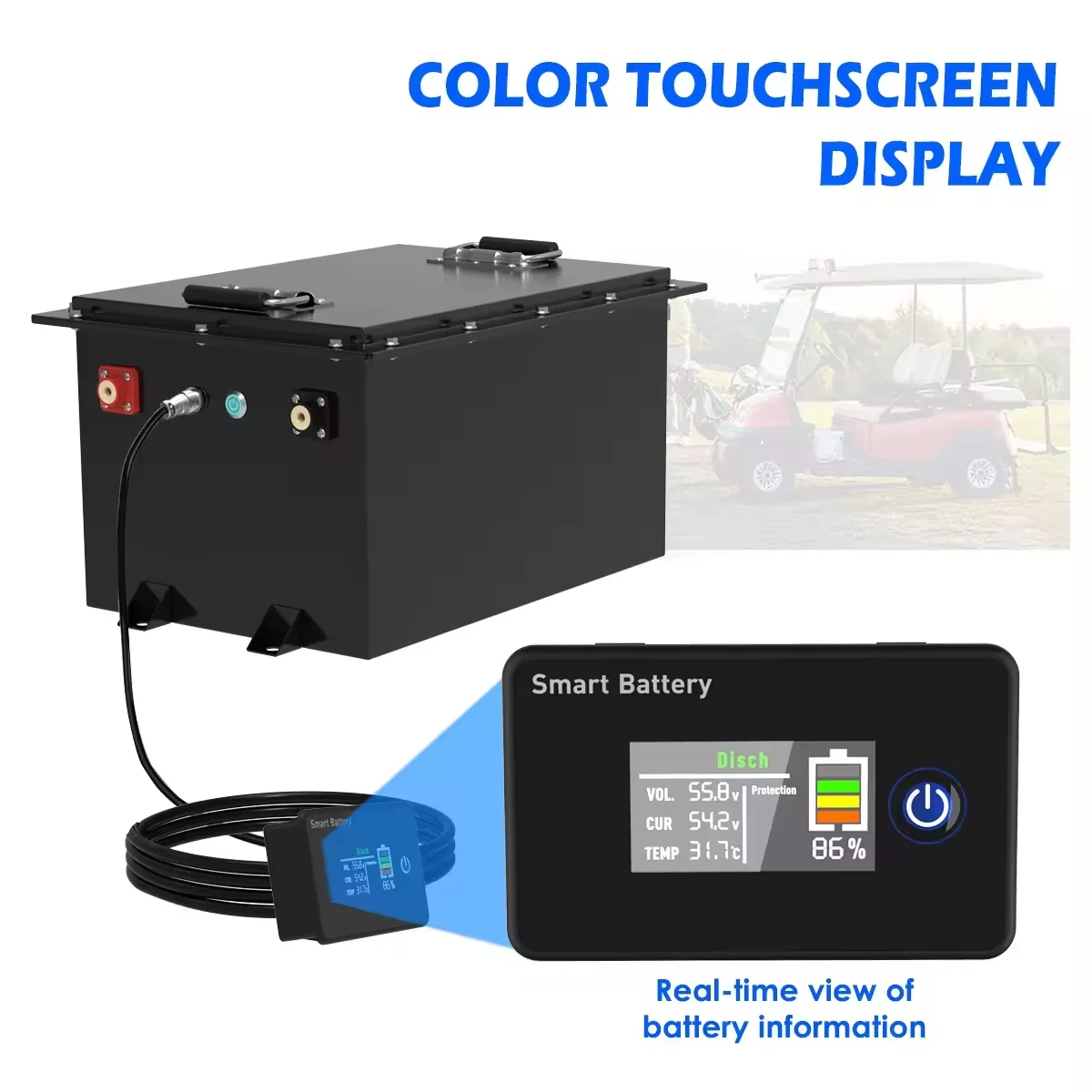

Function		Custom LCD,App BT
Color		black

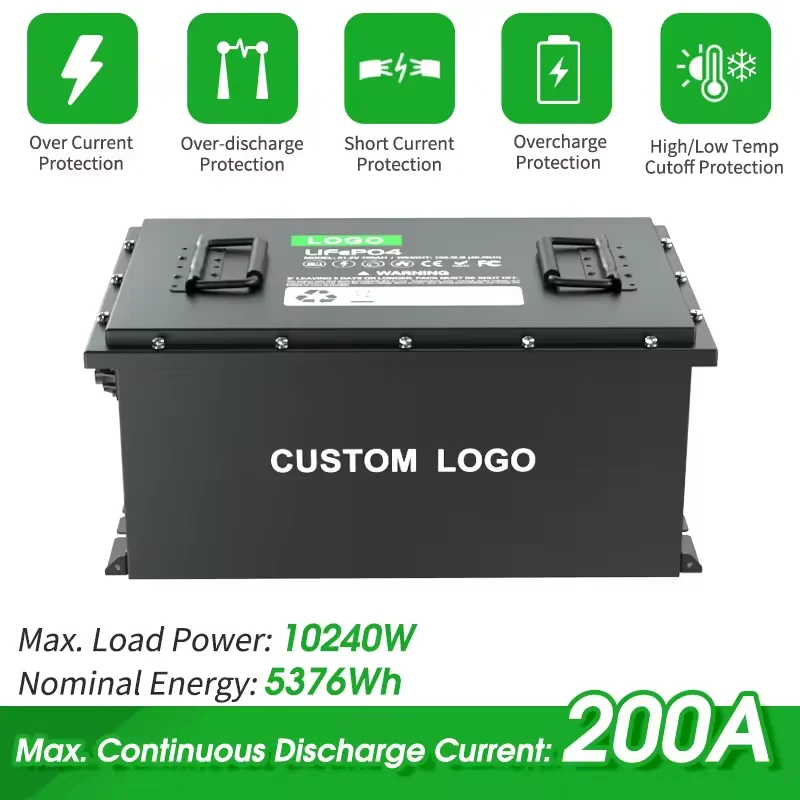

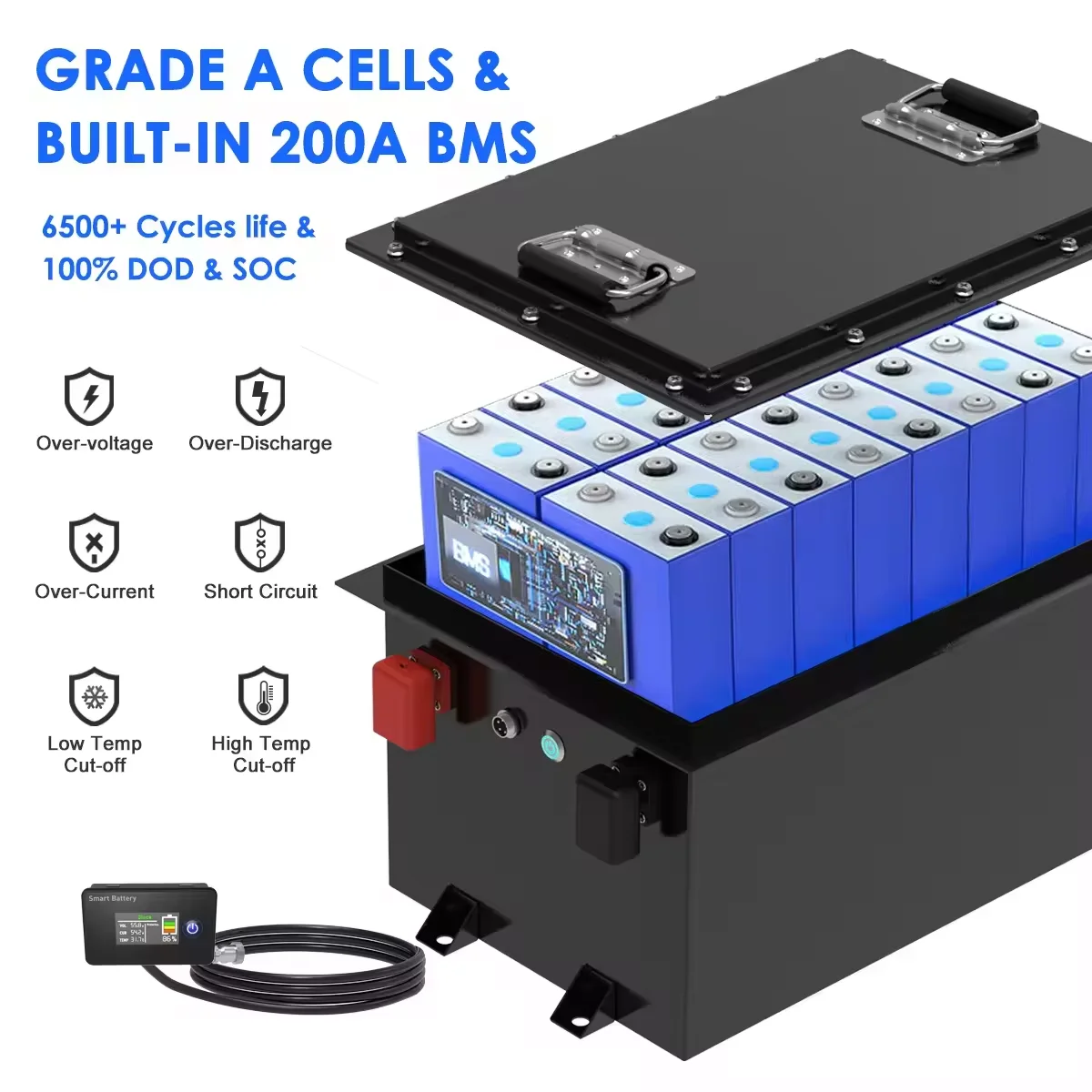

BMS protection		over-charge,over-discharge,over-current,short circuit,over-temperature and balance functions

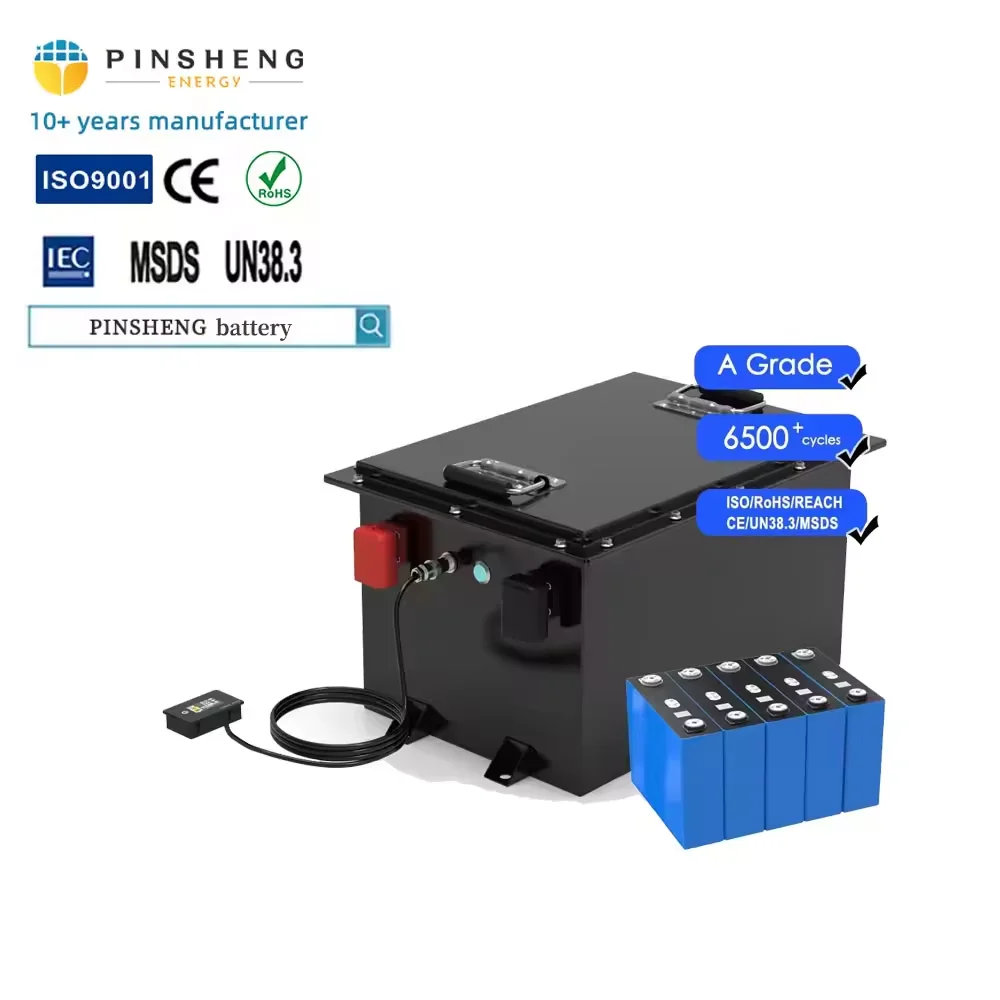

Certifications		CE,MSDS,UN38.3

Pinsheng Energy with R&D located in Changsha City, Hunan Province, near to Guangzhou. It is a High-Tech Enterprise with 4,000 square meters workshop and 121 staffs. Pinsheng Energy focus on developing and producing Lithium battery and battery system integration, after many years development and research, we have formed a complete industry chain from research, production to sales. Our lithium battery has the characteristics of longer cycle life, more higher security and more reliability, higher energy density and other superior performance. Our products are widely used in energy storage system such as off grid wind & solar energy storage, telecommunication system, UPS and etc and power system such as electric motorcycles, electric bikes, E- scooter, electric tricycles, golf cart, fork lift,electric vehicles etc. Pinsheng Energy Battery products has a good reputation in China and abroad, it has strict quality guarantee system to ensure high-quality products. Pinsheng Energy put customers' needs at the first and listen to their suggestions. We will continuously improve our product quality and services. Pinsheng Energy is edicated to be a top OEM &ODM lithium battery manufacturer in the world.
